Carbon nanofiber
Nanomaterial applications
Highly crystalline and high-purity carbon nanofibers synthesized by the chemical vapor deposition (CVD) method. They are used as a conductive agent for the negative electrode of a lithium ion secondary battery.
| Material | Carbon nanofiber（VGCF(R):Vapor Grown Carbon Fiber） |
|---|---|
| Solvent | Water＋Dispersant |
| Capacity | 5mg |
| Material Density | 0.1 wt％ |
| Particle size | 150nm |
| Unit | Nano Premixer PR-1 |
| Operation time setting | 500rpm 30min Ultorasonic |
Related data

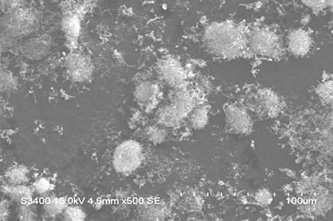

Before
After
Supported products
- Product Name
- Nano Premixer
- MODEL
- PR-1
The next generation ultrasonic mixer that disperses nano-materials in a safe and reproducible manner
