Feature
- Able to charge materials into 3mL, 5mL, 10mL, 20mL, 30mL, 50mL and 55mL syringes, which are too small to charge manually.
- Up to 4 syringes can be charged at one time effectively ( up to 10mL syringes ) .
- Up to 2 syringes can be charged at one time effectively ( up to 55mL syringes ) .
- Capable for materials from low to high viscosity.
- The process from mixing and defoaming to charging is integrated by THINKY products.
- Easy to clean
Specification

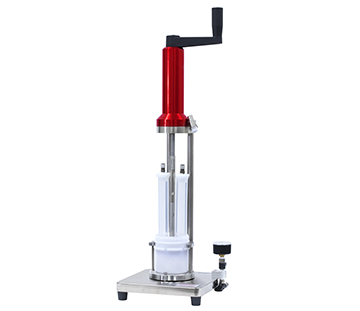

| Model | ARC-55H |
|---|---|
| Target syringe | 3mL, 5mL, 10mL, 20mL, 30mL, 50mL and 55mL, / Nordson, EFD and Musashi |
| Maximum Capacity | Fills four 10mL syringes at once / fills two 55mL syringes at once |
| Standard Container*2 | Specially designed containers 300mL |
| Connection with Vacuum Pump | By 6 mm outer diameter tube (Vacuum pump is sold separatery) |
| Power Supply | None |
| Unit Dimensions | H650 × W240 × D200（mm） |
| Unit weight | Approx. 6.7 kg |
| Accessories | Instruction Manual x 1, Piston ( for 3 and 10mL / 5mL ) x 2, Piston ( for 20 - 55mL ) x 2, Vacuum head x 1, Plug x 3, Syringe cap with check valve x 1 of each size, Cleaning container set x 2 |
