Feature
- Supports a wide range of materials, including high-viscosity materials and nano fillers
- The 2 modes of mixing and deaeration achieve dispersion and deaeration of high-viscosity materials in a small amount of time
- Cold-insulated, heat-resistant adapter enables support of various material characteristics
- Wide variety of adapters for using various containers
- Memory and step-operation functions for controlling and executing operating conditions
- Unique air-cooling system
Specification

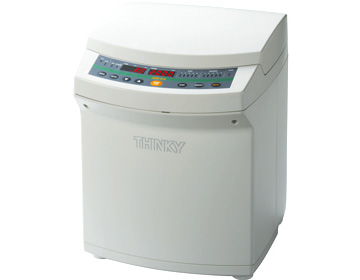

| Model | ARE-310 |
|---|---|
| Maximum Capacity | 310 g *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | 300 ml resin container *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage : Single-phase AC 120 V ± 10 %, 50/60 Hz Power consumption : Approx. 50 VA (standby), Max. 900 VA(operation) |
| Unit Dimensions | H390 × W300 × D340（mm） |
| Unit weight | Approx. 21kg |
| Accessories | Instruction Manual × 1, AC cable (including 3P adapter) × 1, HDPE 300 ml container × 3 pcs, 150 ml container × 1 pc, Adapter for 150 ml container × 1 pc (including 1 rubber ring), Key to unlock door during power failure (unit rear) × 1 |
| Option | Exhaust heat table, Model : ENs-10 |
