Feature
- Supports upgrading from smaller models
- High-durability drive system suitable for production
- Maximum of 500ml or 1.1kg of material can be simultaneously mixed and deaerated
- A wide range of adapters extending the variations of containers usable (syringes, barrels, and disposable containers)
- Cold-insulated, heat-resistant adapter supporting various characteristics of materials
- Memory and step-operation functions for controlling operating conditions
- CE certified model is available
Specification

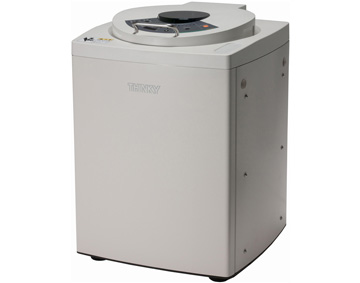

| Model | ARE-500 |
|---|---|
| Maximum Capacity | 1100 g *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | 650 ml resin container *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage : Single-phase AC 100 V ± 10 %, 50/60 Hz Power consumption : Approx. 50 VA (standby) Max. 1400 VA (operation) |
| Unit Dimensions | H692 × W500 × D500（mm） |
| Unit weight | Approx. 95 kg |
| Accessories | Instruction Manual x 1, AC cable (including 3P adapter) x 1,HDPE 650 ml container x 2 pcs, HDPE 550 ml container x 2 pcs, HDPE 300 ml container x 2 pcs, Adapter for 300 ml container x 1 pc (including 3 types of O-ring (1 each)) Phillips screwdriver x 1, L-shaped wrench large x 1, L-shaped wrench small x 1, Open end wrench x 1, Hexagon head bolt M16 × 200 (for carrying the unit) × 4pcs |
| Option | Exclusive stand, Model : ST-50X |
