Feature
- Improving the mixing performance by increasing revolution speed and optimized rotation/revolution ratio
- Ease of condition set on the touch panel
- PC communication enables to manage the traceability
- Compatible with small size MIXER recipes
- Offers optimum conditions for the various material by the changeable rotation speed
- Adapters for various containers are available
- Optional stand is available
Specification

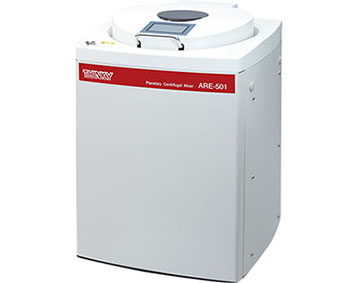

| Model | ARE-501 |
|---|---|
| Maximum Capacity | 1100 g *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | 650 ml resin container *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage : Single-phase AC 100 V ± 10 %, 50/60 Hz Power consumption : Approx. 50 VA (standby) Max. 1500 VA (operation) |
| Unit Dimensions | H686×W500×D500 (mm) |
| Unit weight | Approx. 100 kg |
| Accessories | Instruction Manual x 1, AC cable (including 3P adapter) x 1, HDPE 650 ml container x 2 pcs, HDPE 550 ml container x 2 pcs, HDPE 300 ml container x 2 pcs, Adapter for 300 ml container x 1 pc (including 3 types of O-ring (1 each)), Phillips screwdriver x 1, L-shaped wrench large x 1, L-shaped wrench small x 1, Spanner x 1, Bolt wrench x 1, Hexagon head bolt M16 × 200 (for carrying the unit) × 4pcs |
| Option | Exclusive stand, Model : ST-50X |
