Feature
- The maximum of 20L of material can be simultaneously mixed and deaerated
- The vacuum pressure reduction mechanism provides submicron-level deaeration
- By means of the in-cup-holder vacuum pressure reduction mechanism, pressure reduction and air release time are drastically reduced
- By means of the variable rotation/revolution ratio mechanism, parameter settings in accordance with material properties are achieved
- Supports processing at non-vacuum, enabling processing of materials with volatile components
- No overflow of materials during operation
- With unique heat dissipating construction, supports continuous operation during mass production
- By using adapters, achieves processing with various containers
- CE certified model is available
Specification

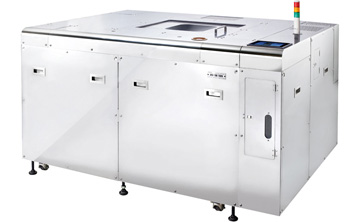

| Model | ARV-10kTWIN |
|---|---|
| Maximum Capacity | 14.5 kg × 2 *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | Specially designed 10 liter SUS containers *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage: Three-phaseAC 200 V ± 10 %, 50/60 Hz Power consumption: Approx. 100 VA (standby), Max 30 kVA (operation) |
| Unit Dimensions | H1,280 × W1,900 × D1,370（mm) |
| Unit weight | Approx. 1500 kg |
| Accessories | Instruction Manual x 1, Power cable x 1, Standard Container: SUS container x 2, Others: Depending on specificationsthers |
| Option | Temp. mesurement option |
