Feature
- No boiling over of materials during operation because the optimal recipe for material can be set.
- Contribute to streamlining of overall mixing and deaeration processing such as increase of processing amount, standardization of work, quality stabilization, reduction of material loss.
- Can support deaeration of sealant for ODF processing and major ODF sealant processing.
- Can support particle-less, clean room class 1000.
Specification

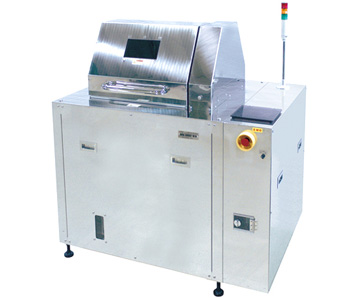

| Model | ARV-3000TWIN |
|---|---|
| Maximum Capacity | 5 kg × 2 *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | Specially designed SUS containers / 4 liter resin containers *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage: Three-phaseAC 200 V ± 10 %, 50/60 Hz Power consumption:Approx. 138.6 VA (standby) Max 10.4 kVA (operation) |
| Unit Dimensions | H1,600 × W1,330 × D1,015（mm) |
| Unit weight | Approx. 800kg |
| Accessories | Instruction Manual x 1, Power cable x 1, Containers and others: Depending on specifications, Vacuum tube x 1, Others (depending on specifications) |
| Option | Temp. mesurement option |
