Vacuum
Special version of vacuum mixer enabling uniform mixing of high specific gravity materials and elimination of submicron-level air bubbles.
- MODEL

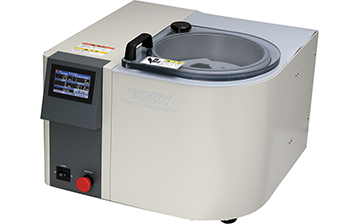

- ARV-310LED
- MAXIMUM CAPACITY
- 310 g
Feature
- Simultaneous mixing, dispersion, and submicron-level air bubble elimination
- Deaeration of high-viscosity materials difficult to be processed by a centrifugal separator
- Reduced processing time and improved deareation performance compared to the atmospheric type mixer
- Centrifugal force of revolution prevents overflow of material during operation
- High-specific-weight materials such as fluorescent material can be evenly dispersed and deaerated without sedimentation (ARV-310LED)
- CE certified model is available
Specification
| Model | ARV-310LED |
|---|---|
| Maximum Capacity | 310 g *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | 300 ml resin container *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage : Single-phase AC 100 V ± 10 %, 50/60 Hz Power consumption : Approx. 50 VA (standby) Max. 1200 VA(operation) |
| Unit Dimensions | H450 × W555 × D645（mm） |
| Unit weight | Approx. 90 kg |
| Accessories | Instruction Manual x 1, AC cable (including 3P adapter) x 1, HDPE 300 ml container x 3 pcs, 150 ml container x 1 pc, Adapter for 150 ml container x 1 pc (including 1 rubber ring), Box wrench x 1, Hexagon wrench x 1, Waste oil receiver x 1, Funnel x 1 |
