Feature
- Large capacity of 3L・5kg.
- No boiling over of materials during operation because the optimal recipe for material can be set.
- Optimal setting according to materials is possible by changing the number of rotations.
- Excellent operability with a touch panel.
- Equipped with cooling function by rotation
- Various containers are supported
- CE certified model is available
Specification

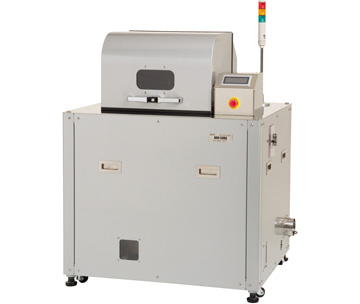

| Model | ARV-5000 |
|---|---|
| Maximum Capacity | 5 kg *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | 4 liter resin container *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage: Three-phaseAC 200 V ± 10 %, 50/60 Hz Power consumption:Approx. 35 VA (standby) Max 4500 VA (operation) |
| Unit Dimensions | H1,650 x W1,050 x D925（mm) |
| Unit weight | Approx. 530 kg |
| Accessories | Instruction Manual x 1, Power cable x 1, Containers and others: Depending on specifications, Vacuum tube x 1, Others (depending on specifications) |
| Option | External host communication function |
