Feature
- Can immediately prepare cold stored solder paste without bringing it back to room temperature
- By optimizing the mixing recipe, viscosity preparation and temperature preparation for solder paste is easy.
- Removes large air bubbles in the paste, which are considered the cause of solder paste defects.
- Handles commercial 500g solder paste containers as is
- Restirs and redisperses solder paste that has been used
- Supports solder paste in syringes by using the optional adapter
- CE certified model is available
Specification

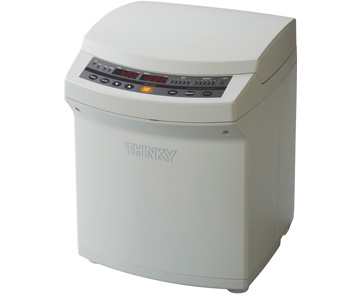

| Model | SR-500 |
|---|---|
| Maximum Capacity | 680 g *1：Total mass to mount on the cup holder, including materials, containers, and adapters. |
| Standard Container*2 | 150 ml resin container *2：Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions. |
| Power Supply | Voltage: Single-phase AC 120 V ± 10 %, 50/60 Hz Power consumption: Approx. 50 VA (standby), Max 900 VA (operation) |
| Unit Dimensions | H390 x W300 x D340（mm） |
| Unit weight | Approx. 18kg |
| Accessories | Instruction Manual x 1, AC cable (including 3P adapter) x 1, 150 ml container x 3, Adapter for HDPE 150 ml container x 1(including 1 O-ring), Silicon rubber sheet x 1, O-ring for fine adjustment x 1, Metal fitting is attached to the unit rear to release the lid lock, in case of power failure. |
| Option | Exhaust heat table, Model : ENs-10 |
