Feature
- Able to charge materials into 3ml, 5ml and 10ml syringes, which are too small to charge manually.
- Up to 4 syringes can be charged at one time effectively.
- Capable for materials from low to high viscosity.
- The process from mixing and defoaming to charging is integrated by THINKY products.
- Easy to clean
Specification

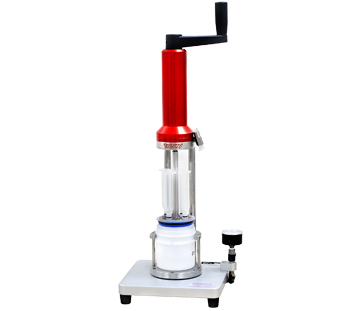

| Model | ARC-40H |
|---|---|
| Target syringe | 3 ml, 5 ml and 10ml, / Nordson, EFD and Musashi |
| Maximum Capacity | fills four 10 ml syringes at once *1 Consult us for 20, 30, and 50 ml syringes. We will provide customization |
| Standard Container*2 | Specially designed containers 300 ml |
| Connection with Vacuum Pump | By 6 mm outer diameter tube (Vacuum pump is sold separatery) |
| Power Supply | None |
| Unit Dimensions | H550 × W200 × D140（mm）Up to the handle height |
| Unit weight | Approx. 7.5 kg |
| Accessories | Instruction Manual x 1, Specially designed container 300 ml x 2, Piston x 2, Vacuum head x 1, Plug x 3, Syringe cap x 3 of each size, Syringe cap with check valve x 1 of each size, Cleaning container set x 2 |
