Syringe Charger

High efficiency of material charging for small volume syringes

MODEL
ARC-40H
MAXIMUM CAPACITY
fills four 10 ml syringes at once

・Able to charge materials into 3ml, 5ml and 10ml syringes, which are too small to charge manually.
・Up to 4 syringes can be charged at one time effectively.
・Capable for materials from low to high viscosity.
・The process from mixing and defoaming to charging is integrated by THINKY products.
・Easy to clean

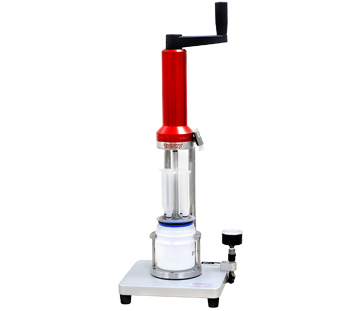

ARC-40H

INQUIRY / CATALOG DOWNLOAD

Feature

ARC-40H is developed for the purpose of easy, quick and bubble free charging materials after mixed, defoamed and dispersed by THINKY MIXER. Small syringes such as 3ml, 5ml and 10ml can be used. The simple configuration allows for easy cleaning.

Specification

Unit Dimensions/ Unit weight H550×W200×D140(mm) Approx. 7.5kg(Up to the handle height)
Maximum Capacity*1
*1:Total mass to mount on the cup holder, including materials, containers, and adapters.
fills four 10 ml syringes at once
Max Processing Simultaneous filling of four 10 ml syringes**Consult us for 20, 30, and 50 ml syringes.We will provide customization
Standard Container*2
*2:Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions.
Specially designed containers 300 ml
Power Supply Instruction Manual × 1Specially designed container 300 ml(Container × 2, Inner lid × 2, Outer lid×2)Vacuum head × 1,Plug × 3Piston × 2,Syringe cap 3 of each Syringe cap with check valve 3 of each Cleaning container set (Cleaning container × 2, lid × 2, rubber ring × 2 )
