Nano Premixer

The next generation ultrasonic mixer that disperses nano-materials in a safe and reproducible manner

MODEL
PR-1
MAX PROCESSING
Applox. 5ml

・Highly Reproducible Dispersion
・Pulverizing time 2-5 minutes.
・Unique Dispersion Technology (Patented)
・Water Temperature Control Using Cooling Unit
・Low Running Cost
・Contamination-free

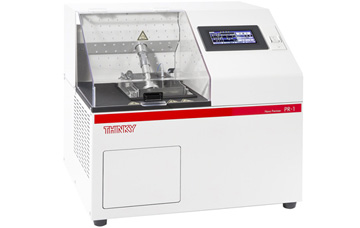

PR-1

Inquiry / Demo

Feature

PR-1 is designed to highly reproduce the dispersion of nano-materials such as CNTs, while operating safely by keeping the sample in an enclosed container. The dual-sonic technology (patented) rotates the container at a high speed while ultrasonic irradiates from the bottom and side of the ultrasonic bath. Rotating the container at an angle of 45℃ causes convection in the materials, and thus ultrasonic irradiates the entire sample.

Specification

Unit Dimensions/ Unit weight H400×W450×D380(mm)Approx. 25kg
Max Processing Applox. 5ml
Maximum Processing Volume 5ml
Standard Container*2
*2:Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions.
Test tube-shaped vial(capacity 5ml)
Power Supply Voltage:Single phase,AC85V - 265V (47Hz - 63Hz)Consumption power:At standby:50VADuring standby operation:500VA(Excl. start time)
Accessories 150ml SUS container
