Nano Pulverizer

Nano pulverizing of material at low temperatures Minimal (100mg) quantities can be pulverized in a short time.

MODEL
NP-100
VOLUME OF MATERIAL
100mg - 10g *1

・Pulverizing quantity minimum 100mg (10ml liquid) to maximum 10g.
・Pulverizing time 2-5 minutes.
・Provides standard recipes for pulverizing.
・Contamination is minimized in a closed container.

NP-100

Inquiry / Demo

Feature

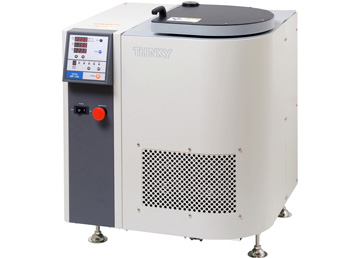

Nano Pulverizer NP-100 was designed with an optimized planetary centrifugal ratio to maximize the collision energy. NP-100 has strong centrifugal forces caused by rotation and revolution motion. The centrifugal forces add acceleration to the pulverizing media (zirconia balls) and strongly pulverize materials. Although dry-milling less than 3 micron pulverization is principally difficult, wet-milling enables nano pulverizing.

Specification

Unit Dimensions/ Unit weight H785×W625×D600(mm)Approx. 96kg
Power Supply Voltage:Single phase,AC120V±10%,50/60HzConsumption power:At standby:55/53VA[50/60Hz]During standby operation:Max.1,400VA
Option Zirconia containers enable pulverization of 10 ml material at minimum
Volume of material 100mg - 10g *1
Maximum liquid volume 80ml
Recommended container Pulverizer set(Zirconia)Media separation set(SUS)

Inquiry / CATALOG Download
