Application

Adhesives/Sealants

Aerospace room temperature adhesive

Two-component adhesive for aircraft. It is used to bond the main wing of an aircraft, etc.

Aerospace room temperature adhesive

Material Two-component and room-temperature curing adhesive.(Epoxy resin)
Capacity 122g
Unit THINKY MIXER ARE-310 / ARE-250CE
Operation time setting Mixing Mode 2000rpm 45sec
Defoaming Mode 2200rpm 2min
Compounding ratio Main agent/Hardener 100:22(w/w)
Material Viscosity Main agent :13000-6000 mPa・s
Hardener :0.3-0.7 mPa・s
Specific gravity Main agent:1.15 Hardener:1

Related data

  • Before

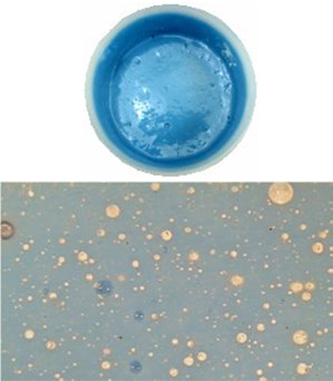

    Before

  • After

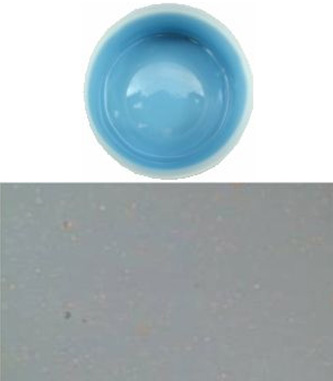

    After

Supported products

THINKY MIXER (Non Vacuum) ARE-310

・Supports a wide range of materials, including high-viscosity materials and nano fillers
・The 2 modes of mixing and deaeration achieve dispersion and deaeration of high-viscosity materials in a small amount of time
・Cold-insulated, heat-resistant adapter enables support of various material characteristics
・Wide variety of adapters for using various containers
・Memory and step-operation functions for controlling and executing operating conditions
・Unique air-cooling system

more
