Products

THINKY MIXER (Vacuum)

Complete deaeration at the submicron level with the even larger capacity of 3LX2

MODEL
ARV-3000TWIN
MAXIMUM CAPACITY
5kg×2

・No spillage of materials during operation because the optimal recipe for material can be set.
・Contribute to streamlining of overall mixing and deaeration processing such as increase of processing amount, standardization of work, quality stabilization, reduction of material loss.
・Can support deaeration of sealant for ODF processing and major ODF sealant processing.
・Can support particle-less, clean room class 1000.

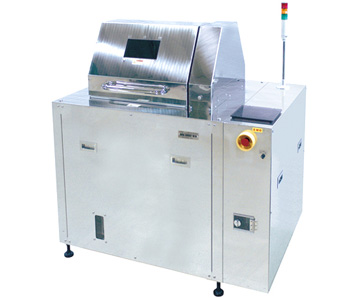

ARV-3000TWIN

INQUIRY / CATALOG DOWNLOAD

Feature

Achieved the large capacity of 3L・5kgX2 while maintaining simultaneous processing of mixing, dispersion and deaeration (defoaming) without spillage. This model plays an active role in increasing efficiency and productivity as well as improving quality because it can process a large amount of materials at once on a mass production line. It can completely remove bubbles at the submicron level in a few minutes even when highly viscous materials are used with the addition of high technology that can make the inside of the mixing container or container holder high vacuum. Also, optimal setting according to materials is possible by changing the number of rotations.

Specification

Unit Dimensions/ Unit weight H1,600×W1,330× D1,015(mm) Approx. 700kg
Maximum Capacity*1
*1:Total mass to mount on the cup holder, including materials, containers, and adapters.
5kg×2
Standard Container*2
*2:Contact us because the actual volume of mixing may vary depending on the containers, materials, and conditions.
Specially designed SUS containers / 4 liter resin containers
Power Supply Voltage: Three-phaseAC 200 V ± 10 %, 50/60 Hz 30 APower consumption:Approx. 138.6 VA (standby)Max 10.4 kVA (operation)
Accessories Instruction Manual × 1,Power cable × 1,Containers and others: Depending on specificationsVacuum pump oil,Others (depending on specifications)
Option Program: TWIN OS (Japanese/ English)

Inquiry / CATALOG Download
